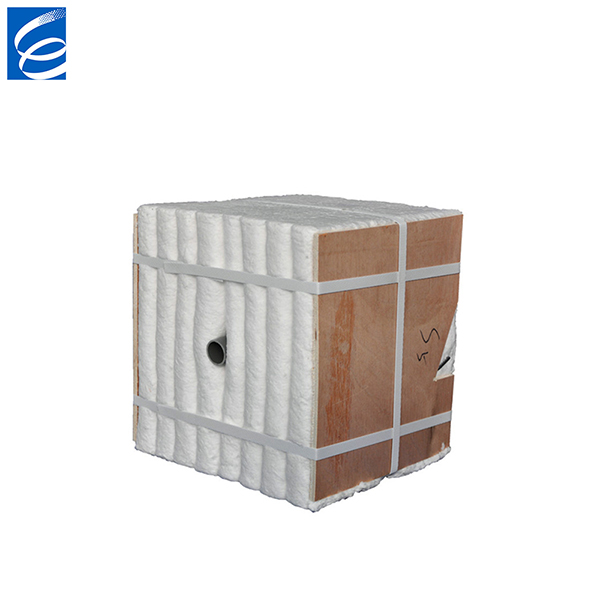

Ceramic Fibre Module

Description

CT ceramic fibre module adopts high quality ceramic fibre blanket, which is made up to compression module after folding,
compression, packing. Module can choose kinds combination of anchor and furnace body. Installation method is so simple that can quicken the speed of furnace lining construction largely. After installation, the bandaging is cut and the modules are to form an integrated insulating lining. The anchor system in remote from the module hot face maintains the metal components at a relatively
low temperature.
Features
The anchor on the back allows both in-line and parquet installation
The decompression of the blanket folds give tightly sealed intermodular joints with both configurations
The resilient blanket is resistant to mechanical damage
Low thermal conductivity gives high thermal efficiency
Total resistance to thermal shock
No drying or curing required - so available for production operation immediately after installation
The anchor is remote form the module hot face
It can be cut to satisfy the requirement of different parts
Typical Application
Metallurgy, machinery, building materials, petrochemical industry, non-ferrous metal and other industries of all kinds of industrial furnace, heating furnace lining

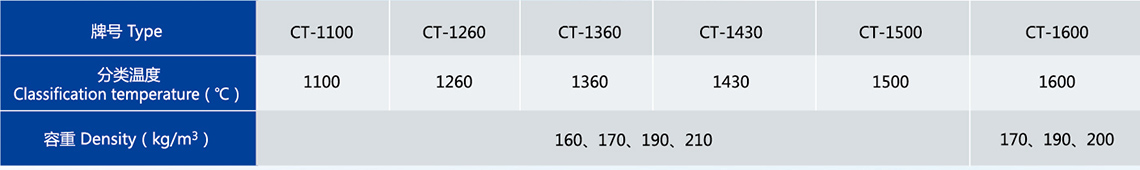

Parameter Control
