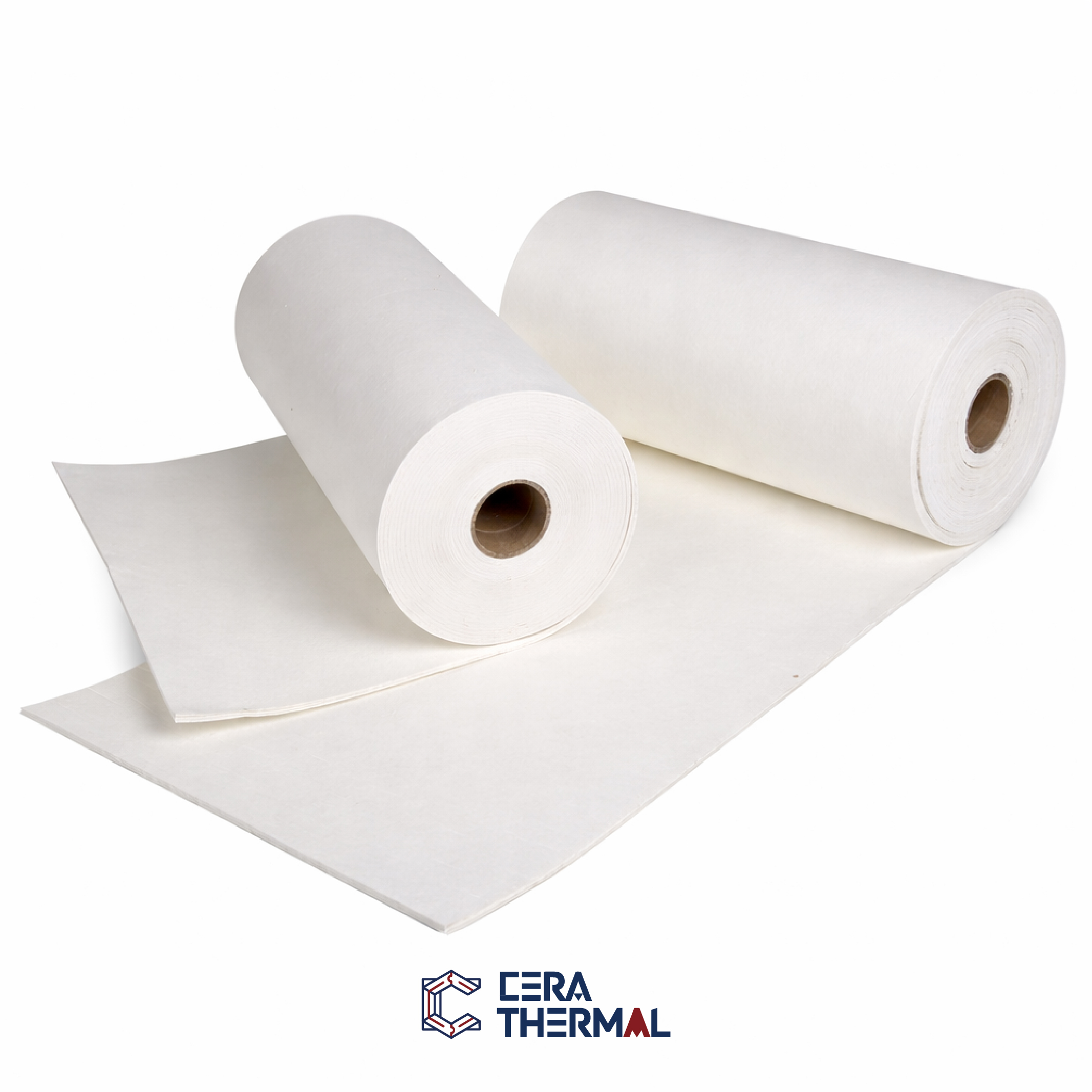

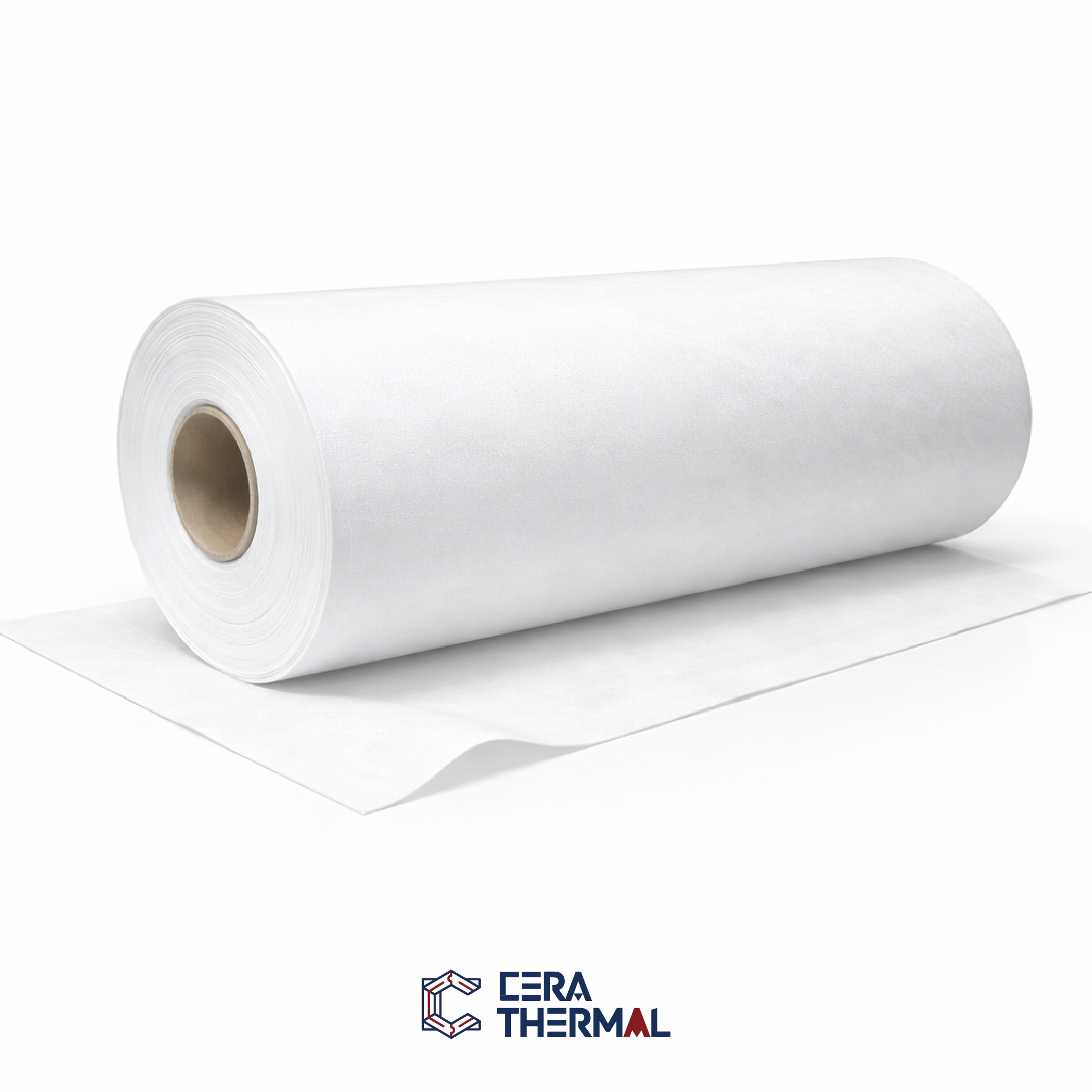

Ceramic fiber paper/gaskets are manufactured from selected alumina-silicate ceramic fiber cotton as the primary raw material using a wet-forming process. The slag removal and drying processes are improved based on traditional production methods. The products are asbestos-free and feature uniform fiber distribution, a white appearance, no delamination, and low shot content (achieved through four-stage centrifugal shot removal). Bulk density can be flexibly adjusted according to application requirements. The paper/gaskets also exhibit high strength (with reinforcing fibers), good elasticity, and excellent machinability.
According to different service temperatures, the products are classified into three grades: standard, high-alumina, and zirconia-containing ceramic fiber paper/gaskets.
1. Low thermal conductivity and low thermal capacity
2. Low shot content
3. Good tear resistance and high flexibility
4. Asbestos-free, corrosion-resistant, and non-reactive with molten aluminum
5. Good electrical insulation and sound insulation properties
6. Excellent mechanical performance
Fire Resistant: Remains in full shape and size after a fire.
High temperature resistance: There are two types of temperature resistance: 1260 and 1400℃.
Heat insulation: It can effectively prevent or slow down heat transfer, and the thermal conductivity at 800℃ can be as low as 0.12w/(m.k).
Insulation: Inorganic silicate material, non-conductive at high temperature.
Sound insulation: high noise reduction coefficient.
Seal: has certain elasticity, can be used for high temperature sealing
Classification temperature (℃) | 1260 | 1350 | 1430 | |
Density (kg/m³) | 200±15 | 200±15 | 200±15 | |
Organic content (%) | ≤10 | |||
Tensile strength (KPa) | 1mm ≥ 200; 2mm-6mm ≥ 300 | |||
Permanent linear shrinkage(℃ *24h) | ≤4.0 (1000°C) | ≤4.0 (1100°C) | ≤3.0 (1200°C) | |
Thermal Conductivity (W/m.k) | 600℃ | 0.09 | ||
800℃ | 0.14 | |||
1000℃ | 0.20 | |||
Chemical Composition （After burning） | Al₂O₃ | ≥43 | ≥46 | ≥37 |
Al₂O₃+SiO₂ | ≥98 | ≥98 | ≥84 | |
ZrO₂ | — | — | ≥13 | |
Others | ≤2.0 | ≤2.0 | ≤2.0 | |
Size
Length (mm) | Width (mm) | Thickness (mm) |
60000 | 610/1220 | 1 |
50000 | 610/1220 | 2 |
40000 | 610/1220 | 3 |
30000 | 610/1220 | 4 |
20000 | 610/1220 | 5 |
10000 | 610/1220 | 6 |
Package | Carton or Pallet | |
