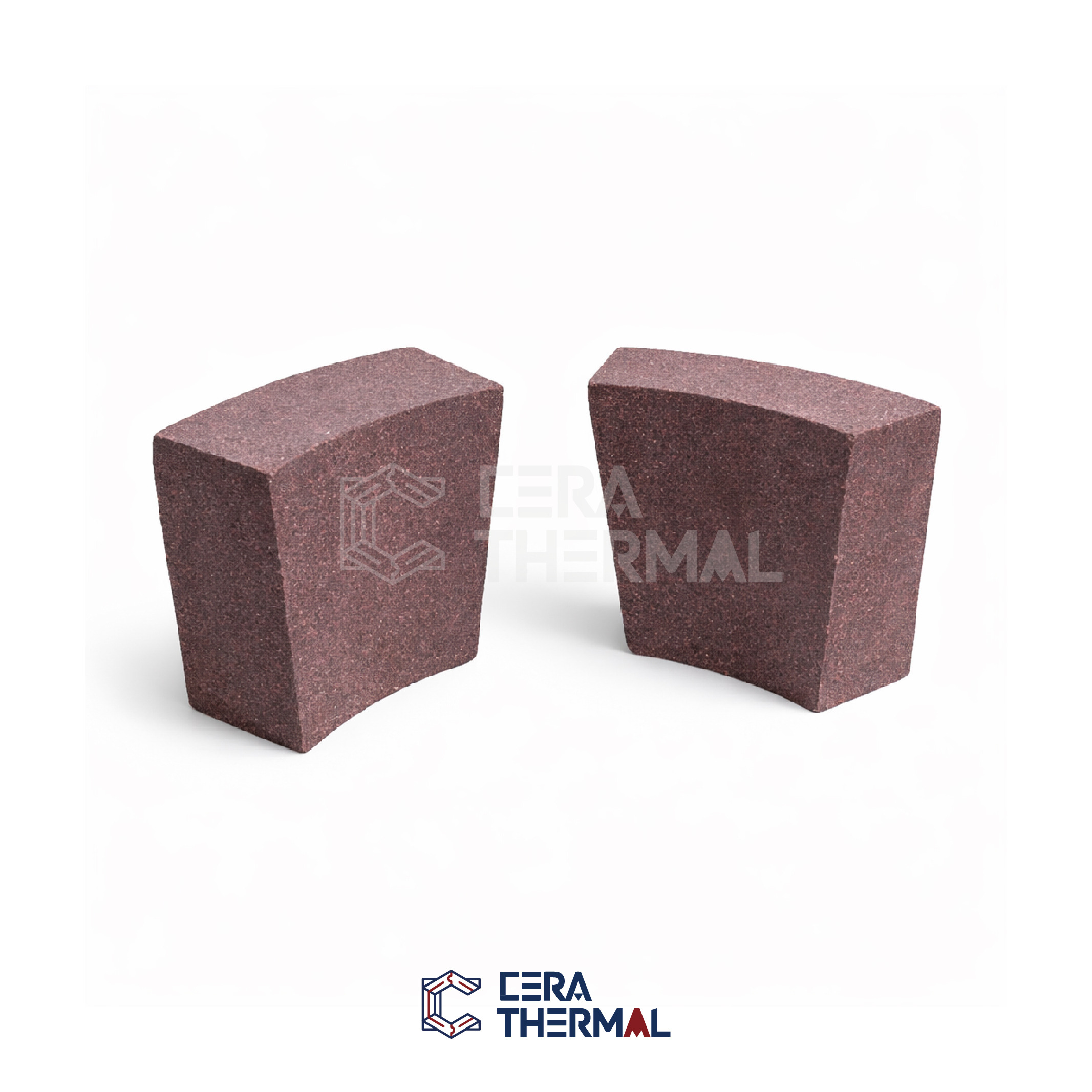

Chrome corundum brick is a high-performance refractory material produced from fused corundum, chromium oxide, and alumina micropowder, accurately proportioned and processed through high-temperature sintering.
High hardness with excellent wear and erosion resistance.
Good high-temperature strength and structural stability.
Excellent resistance to slag corrosion and penetration.
Minimal permanent linear change at high temperatures.
High density and low porosity, providing a long service life.
Non-ferrous metal smelting: Linings of various high-temperature furnaces.
Other industrial kilns: Equipment operating under severe corrosion and erosion conditions.
Type | Unit | CTGGZ-5 | CTGGZ-10 | CTGGZ-12 | CTGGZ-12 | CTGGZ-30 | |
Density ≥ | kg/m3 | 3.0 | 3.15 | 3.15 | 3.15 | 3.25 | |
Apparent Porosity ≤ | % | 17 | 17 | 17 | 17 | 17 | |
Cold crushing strength ≥ | MPa | 100 | 100 | 100 | 100 | 100 | |
Refractoriness ≥ | ℃ | 1790 | 1790 | 1790 | 1790 | 1790 | |
0.2MPa,T0.6Refractoriness under Load ≥ | ℃ | 1700 | 1700 | 1700 | 1700 | 1700 | |
Chemical Compoaition | Al₂O₃ ≥ | % | 93 | 83 | 80 | 78 | 62 |
Fe₂O₃ ≤ | % | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
Cr2O3 ≥ | % | 5 | 10 | 12 | 14.5 | 30 | |
