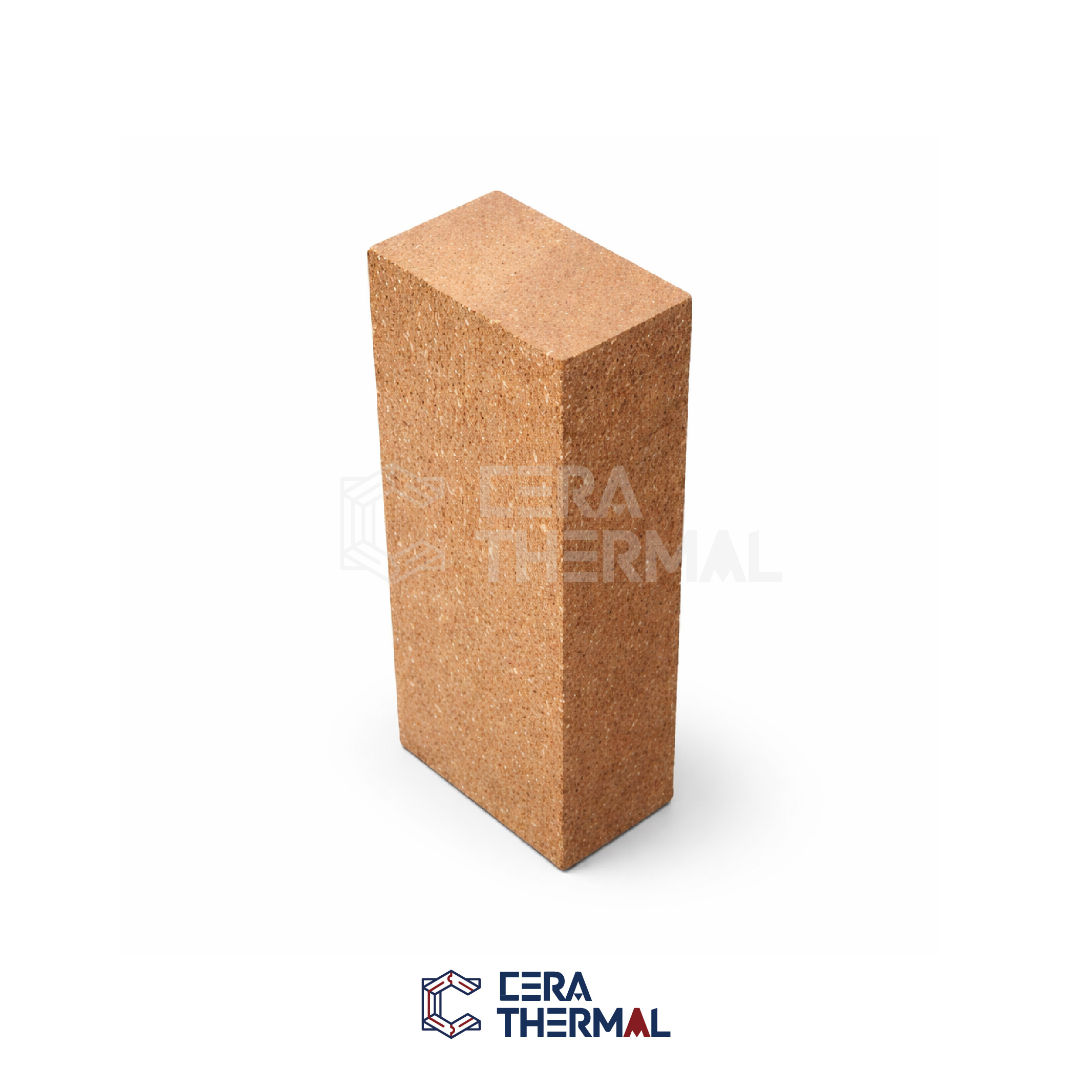

High-purity magnesia brick is a basic refractory material with a magnesia (MgO) content of over 96%, with periclase as the main crystalline phase. It exhibits excellent resistance to high-temperature corrosion and maintains good structural stability under severe operating conditions.
• Excellent resistance to slag corrosion
• Outstanding volume stability at high temperatures
• High refractoriness and good structural stability
Non-ferrous Metallurgy: Linings and tuyere zones of smelting furnaces for copper, lead, zinc, and nickel.
Cement Industry: Burning zones and transition zones of large-scale cement rotary kilns.
Glass Industry: Regenerators, melting tanks, and tank bottoms of glass melting furnaces.
Other High-Temperature Furnaces: Linings of calcining kilns, lime kilns, carbon kilns, and other equipment operating under severe corrosive conditions.
Type | Unit | CTM97A | CTM97B | CTM98 | |
Density ≥ | kg/m3 | 3.00~3.20 | |||
Apparent Porosity ≤ | % | 16 | 18 | 16 | |
Cold crushing strength ≥ | MPa | 60 | 60 | 60 | |
0.2MPa,T0.6Refractoriness under Load ≥ | ℃ | 1700 | 1700 | 1700 | |
Permanent Linear Change on Heating (1650℃×2h) | % | -0.2~0 | -0.2~0 | -0.2~0 | |
Chemical Compoaition | MgO ≥ | % | 95 | 96.5 | 98 |
SiO₂ ≤ | % | 1.2 | 1.5 | 1.0 | |
