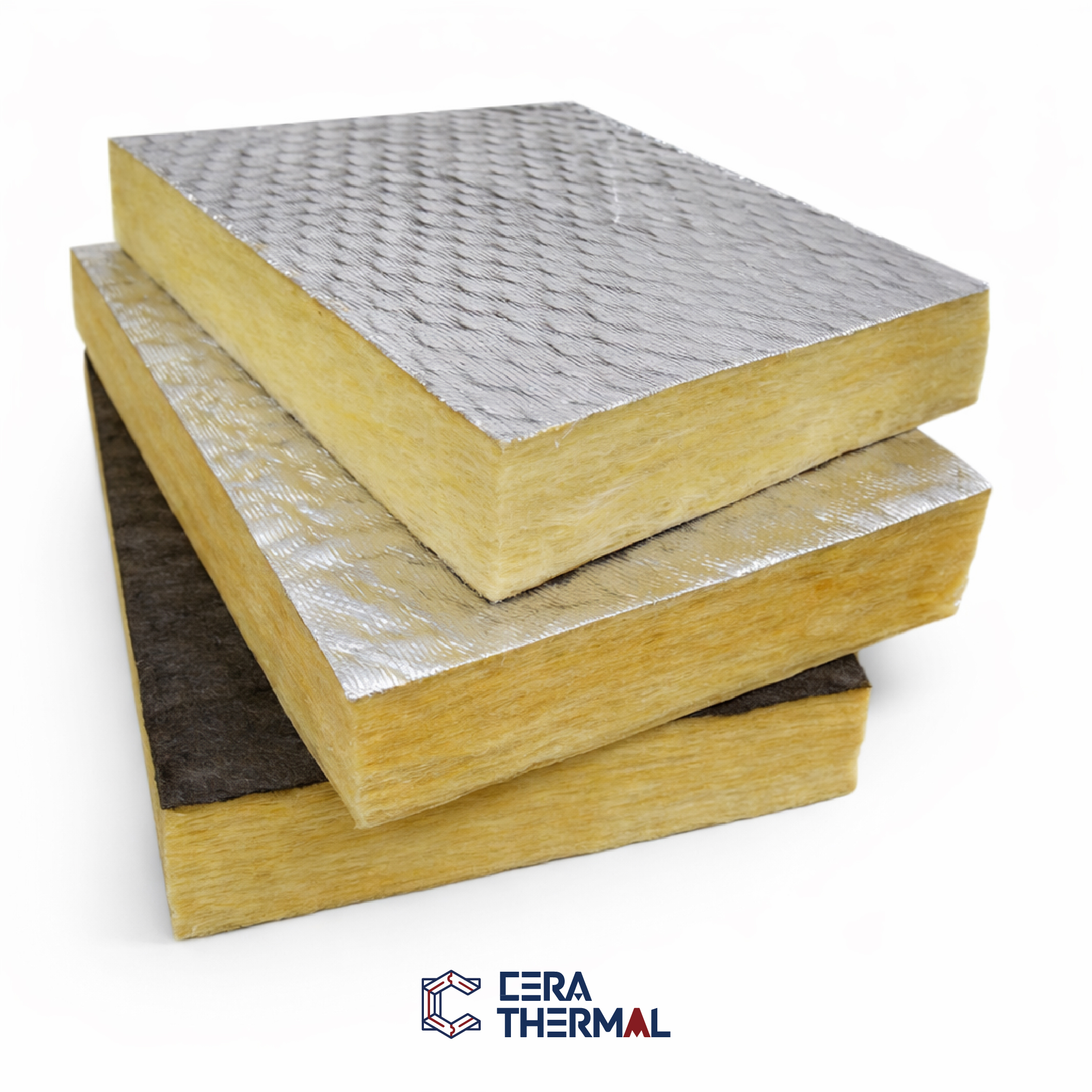

CT Series exterior wall and roof mineral wool boards are fireproof insulation materials mainly used in external thermal insulation plaster systems and dry curtain wall thermal insulation systems. They feature good compressive strength, tensile strength, and excellent water and moisture resistance, and are suitable for application on masonry, concrete, and other dense structural base walls.

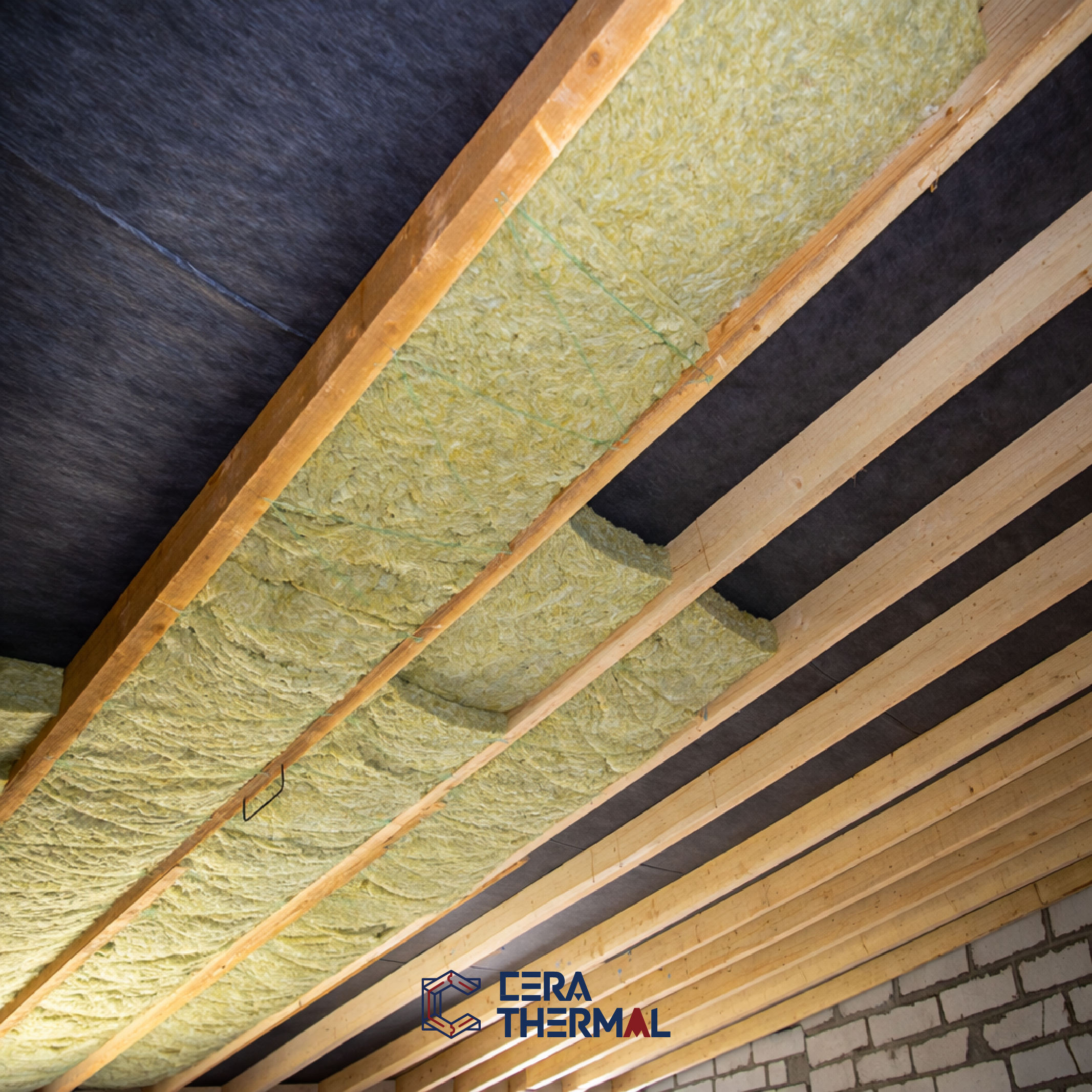

Mineral wool boards can be used not only for the external thermal insulation of new buildings and extensions, but also for energy-saving renovation of existing buildings. With a Class A non-combustible fire rating and high resistance to high-temperature shrinkage, they can maintain the stability of the system structure in the event of fire.
Brand | CT L40 | CT L60 | CT L70 | Standard |
Compressive Strength Kpa | ≥40 | ≥60 | ≥70 | GB/T 13480 EN826 |
Thermal Conductivity (25℃) W/m.k | ≤0.039 | ≤0.039 | ≤0.039 | GB/T 10294 EN13162 |
Point Load(compress 5mm) | ≥200 | ≥500 | ≥600 | EN 12430 |
Combustion Performance | A | A | A | GB 8624-1997 |
Acidity Coefficient | ≥1.8 | ≥1.8 | ≥1.8 | GB/T 5480 |
Hydrophobicity % | ≥99 | ≥99 | ≥99 | GB/T 10299 |
Hydrophobicity Rate % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T 5480 ASTM C1104M |
Short-term water absorption kg/m³ | ≤0.5 | ≤0.5 | ≤0.5 | GB/T 5480 EN1609 |
Long-term water absorption kg/m³ | ≤2.0 | ≤2.0 | ≤2.0 | GB/T 5480 EN12087 |
Dimensional Stability % | ≤1.0 | ≤1.0 | ≤1.0 | GB/T 8811 EN1604 |
Melting Temperature ℃ | ≥1000 | ≥1000 | ≥1000 | --- |
Squareness Mm/m | ≤5 | ≤5 | ≤5 | GB/T 5480 EN824 |
