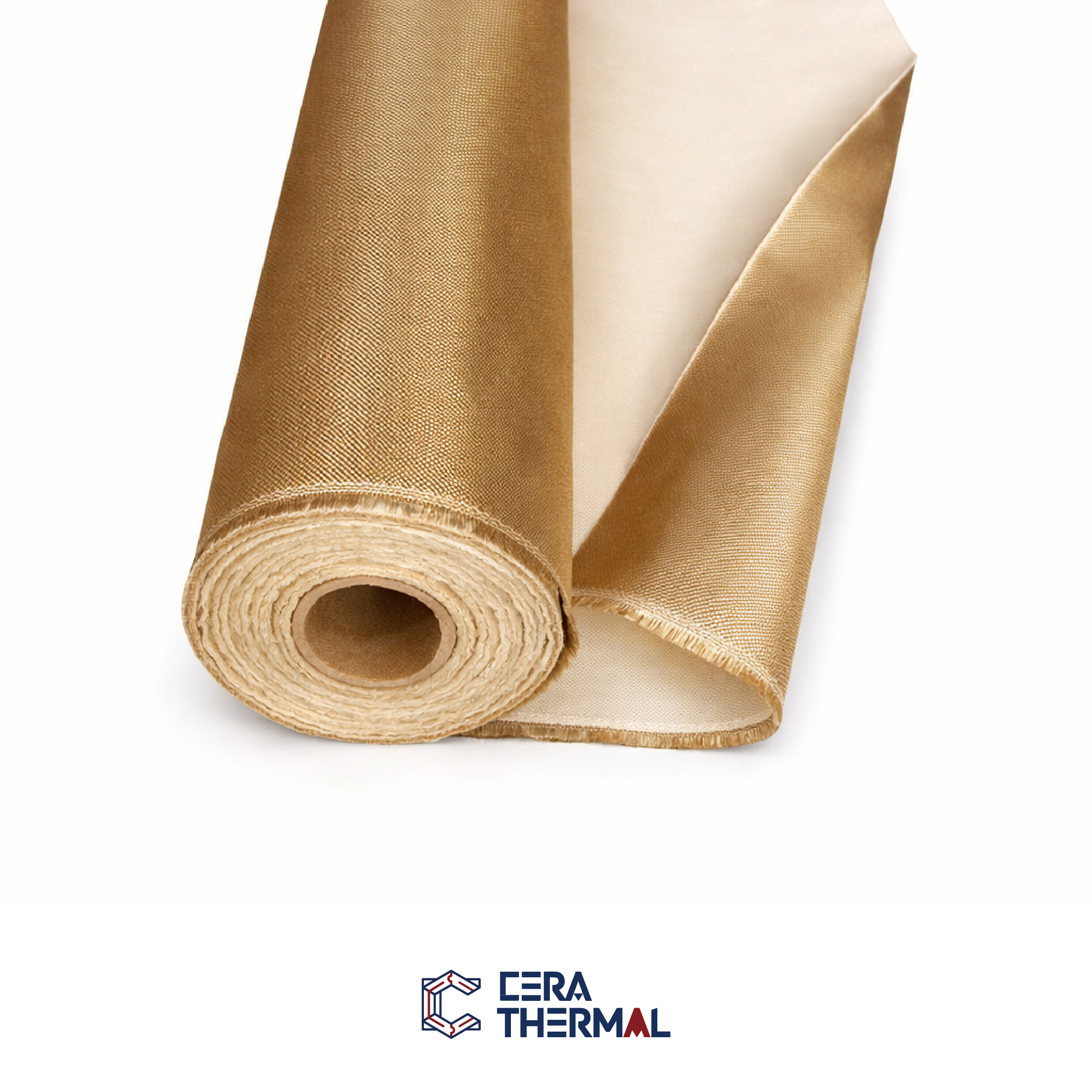

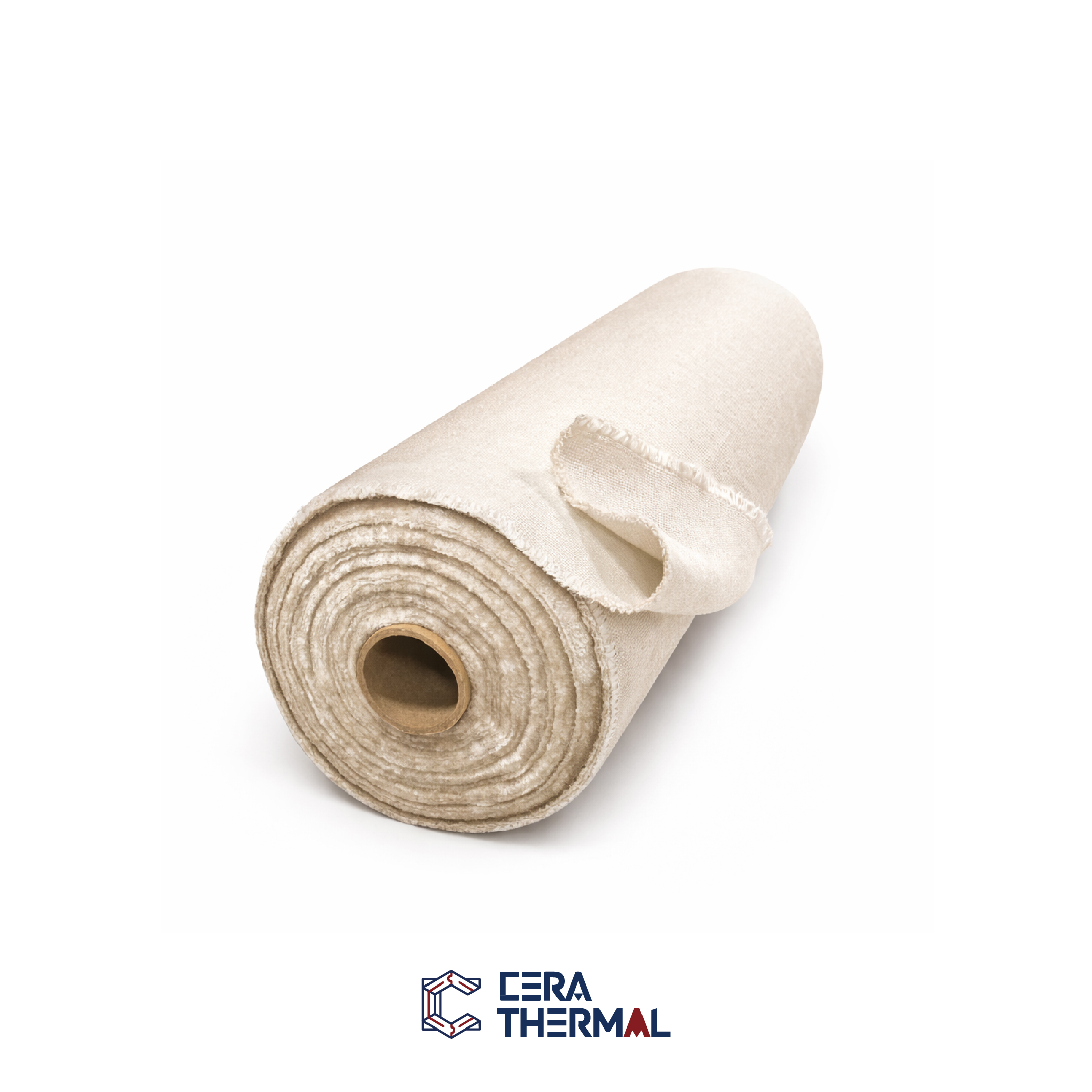

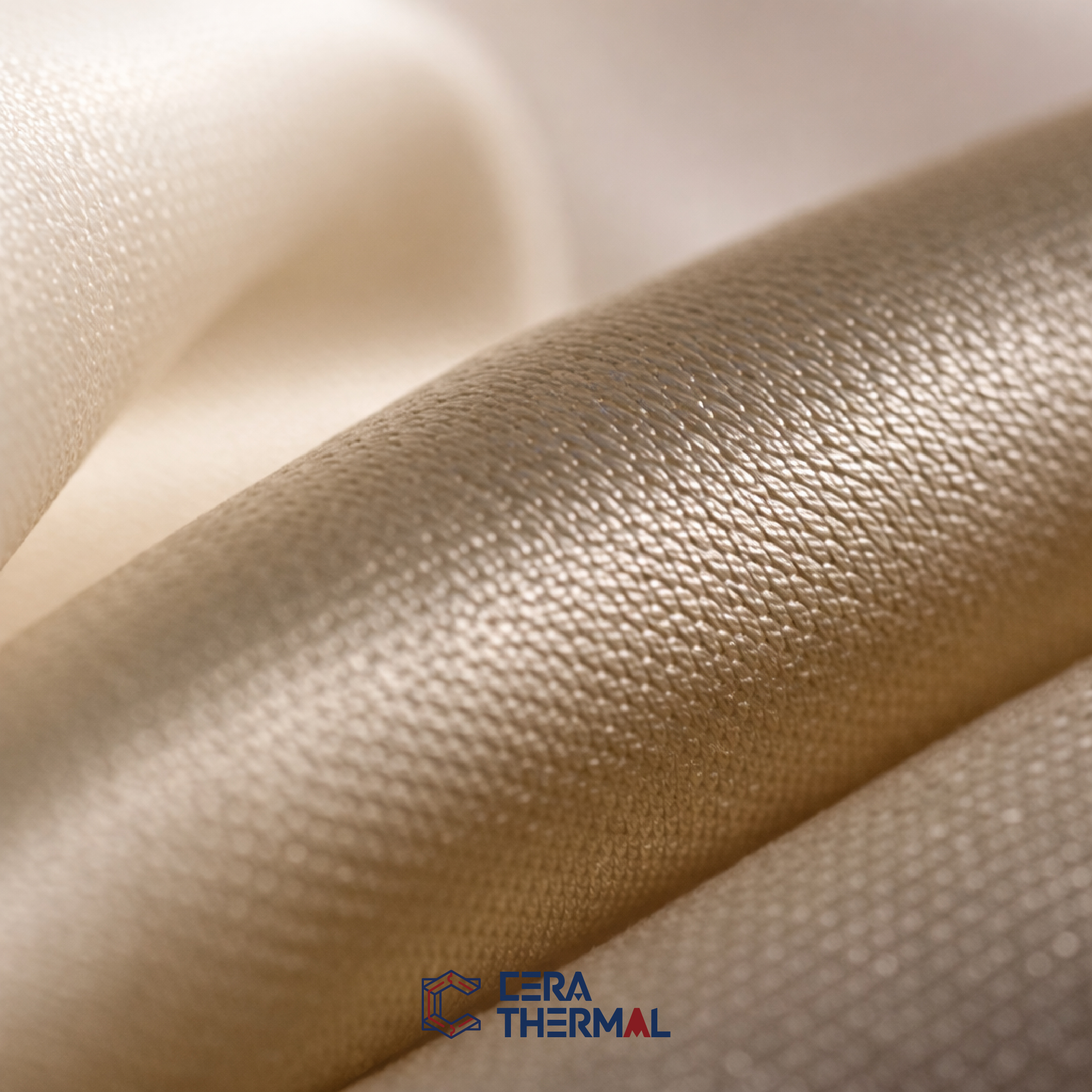

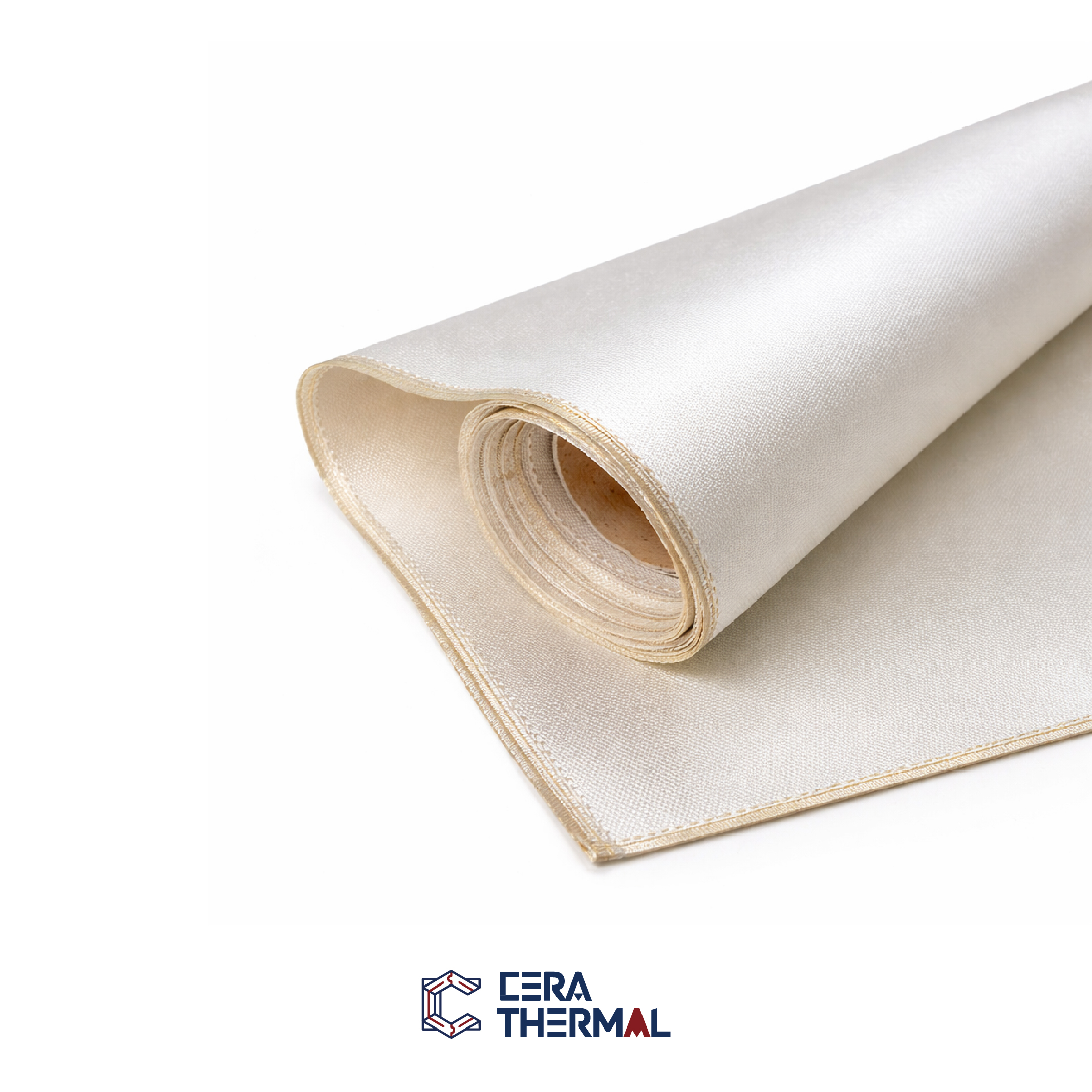

The special high-temperature fiber cloth series is a flexible refractory material made from high-temperature-resistant fibers such as aluminosilicate, basalt, and ceramic fibers through weaving, shaping, and compounding processes. Its core characteristics include excellent high-temperature resistance, with long-term service temperatures ranging from 500 to 1200 °C, and some high-end grades capable of withstanding short-term ultra-high temperatures. It also features good flame-retardant and thermal insulation properties, as well as chemical corrosion resistance and thermal shock resistance. The material is non-combustible and non-dripping at high temperatures, and is lightweight, flexible, and easy to cut, sew, and wind, offering strong adaptability during installation. In addition, this series of materials has adequate tensile strength, is not prone to tearing, and can meet installation and service requirements under complex working conditions.
This series of materials is widely used in metallurgy, building materials, electric power, petrochemical, and other industries. In the metallurgical industry, it is used for furnace door sealing and pipeline insulation cladding in blast furnaces and converters. In the building materials industry, it is suitable for thermal insulation layers of ceramic kilns and insulation curtains for kiln cars. In the electric power sector, it is applied to boiler insulation and fire protection of cables. In the petrochemical industry, it is used as fireproof and thermal insulation layers for storage tanks and transmission pipelines. It is also suitable for high-temperature protection of aerospace testing equipment and new energy battery packs, meeting high-temperature thermal insulation and fire protection requirements across multiple applications.
Type | UNITS | G10WD | HS1017QZ | HS1018QZ | HS1019QZ |
Si02 | % | _ | ~98.2 | ~95 | ~95 |
Thickness | mm | 1.26 | 1.4 | 0.7 | 1.26 |
Thread Count | per cm | _ | TARP:18/WEFT:13 | _ | — |
Tensile Strength | N/2.5cm | _ | TARP:4000/WEFT:3000 | _ | — |
Width | mm | 920 | _ | — | — |
Weave | __ | satin weave | 12HS SATIN | 8HS SATIN | 12HS SATIN |
Yan | _ | _ | TARP:EC9 136 2×2/WEFT:EC9 136 2×2 | TARP:EC9 136 1x2 TEFT:EC9 136 1x2 | TARP:EC9 136 2x2 TEFT:EC9 136 2x2 |
Length | m/roll | 10 | _ | _ | _ |
Warp / weft density | thread/cm | 18*13 | _ | _ | _ |
Total weight | g/㎡ | 1120 | 1100 | 700 | 1200 |
others | _ | _ | _ | complex coating | Double sides Vermiculate Coating |
