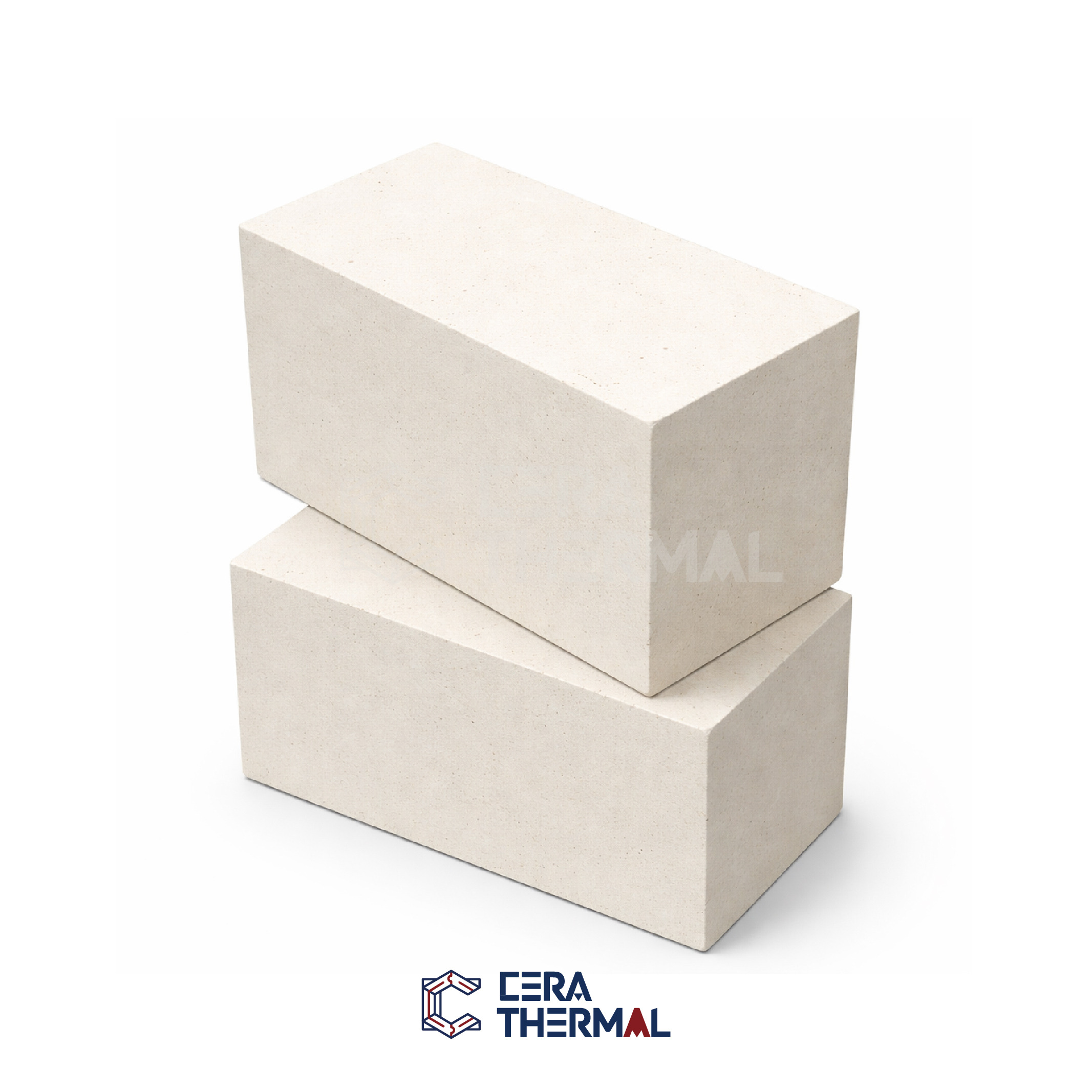

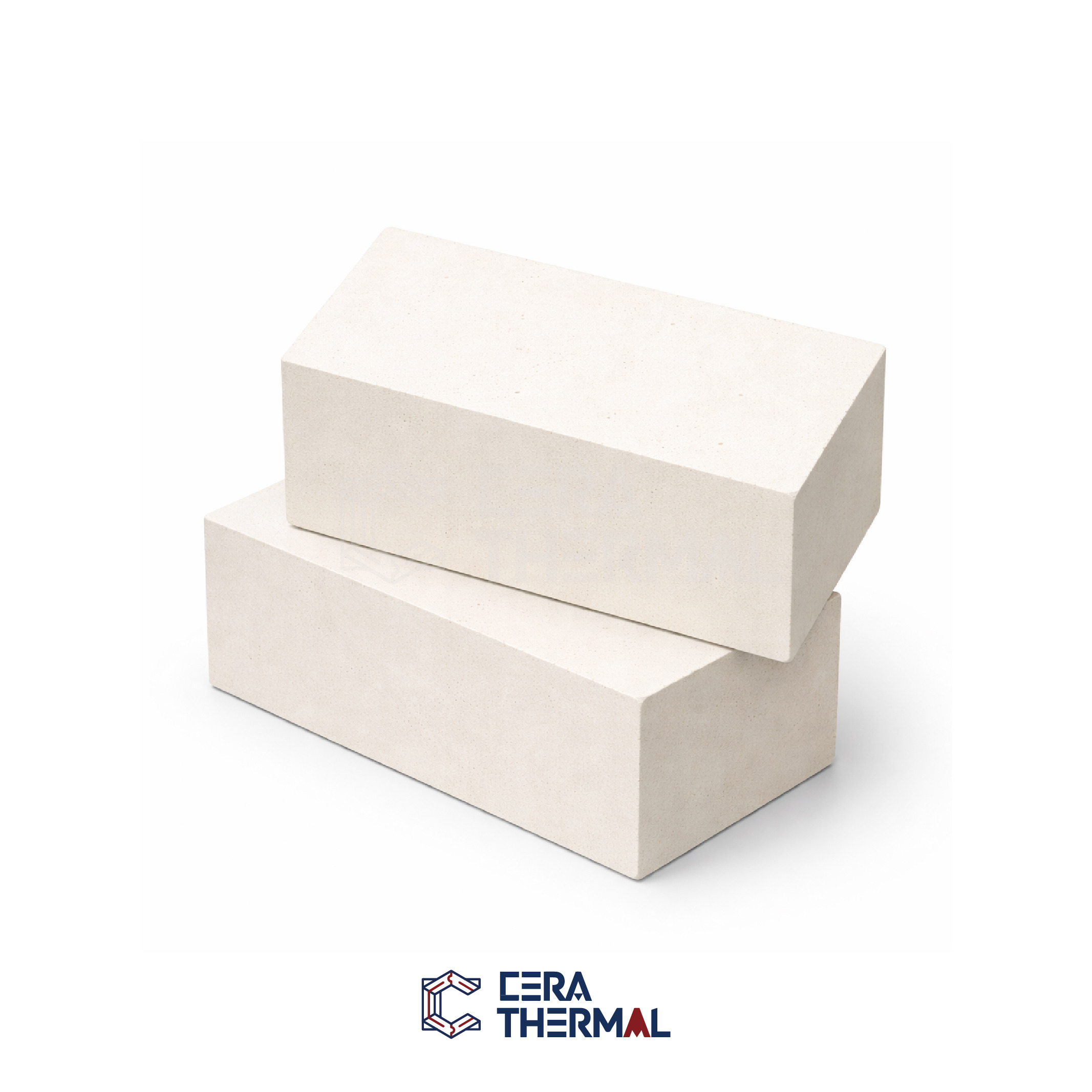

Zirconia-corundum brick is a type of fused-cast refractory material mainly composed of alumina, zirconia, and silica. It is produced through an electric fusion and casting process, resulting in a compact and dense structure with excellent high-temperature corrosion resistance.
This product is widely used in high-grade glass melting furnaces.
Type | Unit | CTAZr10 | CTAZr5 | CTAZrC12 | |
Density ≥ | kg/m3 | 3.1 | 3.0 | 3.2 | |
Apparent Porosity ≤ | % | 18 | 20 | 16 | |
Cold crushing strength ≥ | MPa | 130 | 100 | 100 | |
0.2MPa,T0.6Refractoriness under Load ≥ | ℃ | 1680 | 1680 | 1680 | |
Linear Change Rate After Firing at 1600℃*3h | % | ±0.3 | ±0.3 | ±0.3 | |
Chemical Compoaition | ZrO2 ≥ | % | 10 | 5 | |
Al2O3 ≥ | % | 85 | 90 | 80 | |
Fe2O3≤ | % | 0.5 | 0.5 | 0.5 | |
ZrO2 +Cr2O3≥ | % | 12 | |||
