Ever wonder how industrial furnaces withstand extreme heat? The secret lies in refractory materials. These materials protect equipment from intense temperatures and harsh conditions.
Choosing the right refractory material is vital for safety, efficiency, and equipment lifespan. Many industries rely on them for high-temperature processes.
In this post, you’ll learn what refractory materials are, why they matter, and how to select the best type for your industrial needs.
When selecting refractory materials, knowing the operating and maximum temperatures is crucial. Each industrial process has a specific temperature range that the refractory lining must endure without losing its integrity. For example, some processes operate around 932°F (500°C), while others may exceed 3000°F (1650°C). The refractory must maintain its physical and chemical stability throughout these temperatures to ensure safety and efficiency.
Refractory materials vary widely in their temperature resistance. They are generally classified as:
Low-temperature refractories: Suitable up to about 1650°F (900°C), often used in insulation.
Medium-temperature refractories: Effective up to 2730°F (1500°C), common in general furnace linings.
High-temperature refractories: Withstand above 2730°F (1500°C), used in steelmaking, glass furnaces, and cement kilns.
Materials like alumina, silica, magnesia, and zirconia each have different melting points and thermal stabilities. For instance, magnesia can handle temperatures up to 2800°C, making it ideal for steelmaking, while silica is better for thermal shock resistance but less stable in acidic environments.
Thermal shock occurs when a refractory material experiences rapid temperature changes, causing internal stresses. These stresses can lead to cracking and spalling, where layers break off from the surface. This damage shortens the refractory's service life and can compromise equipment safety.
Spalling often results from:
Temperature cycling: Frequent heating and cooling.
High thermal gradients: Uneven temperature distribution.
Mechanical impacts: During operation or maintenance.
Selecting materials with good thermal shock resistance is essential. For example, silica refractories resist thermal shock better than dense alumina bricks. Proper design, such as allowing expansion gaps and using insulating layers, also helps mitigate these issues.
To optimize thermal performance, engineers often use multi-component linings. These combine:

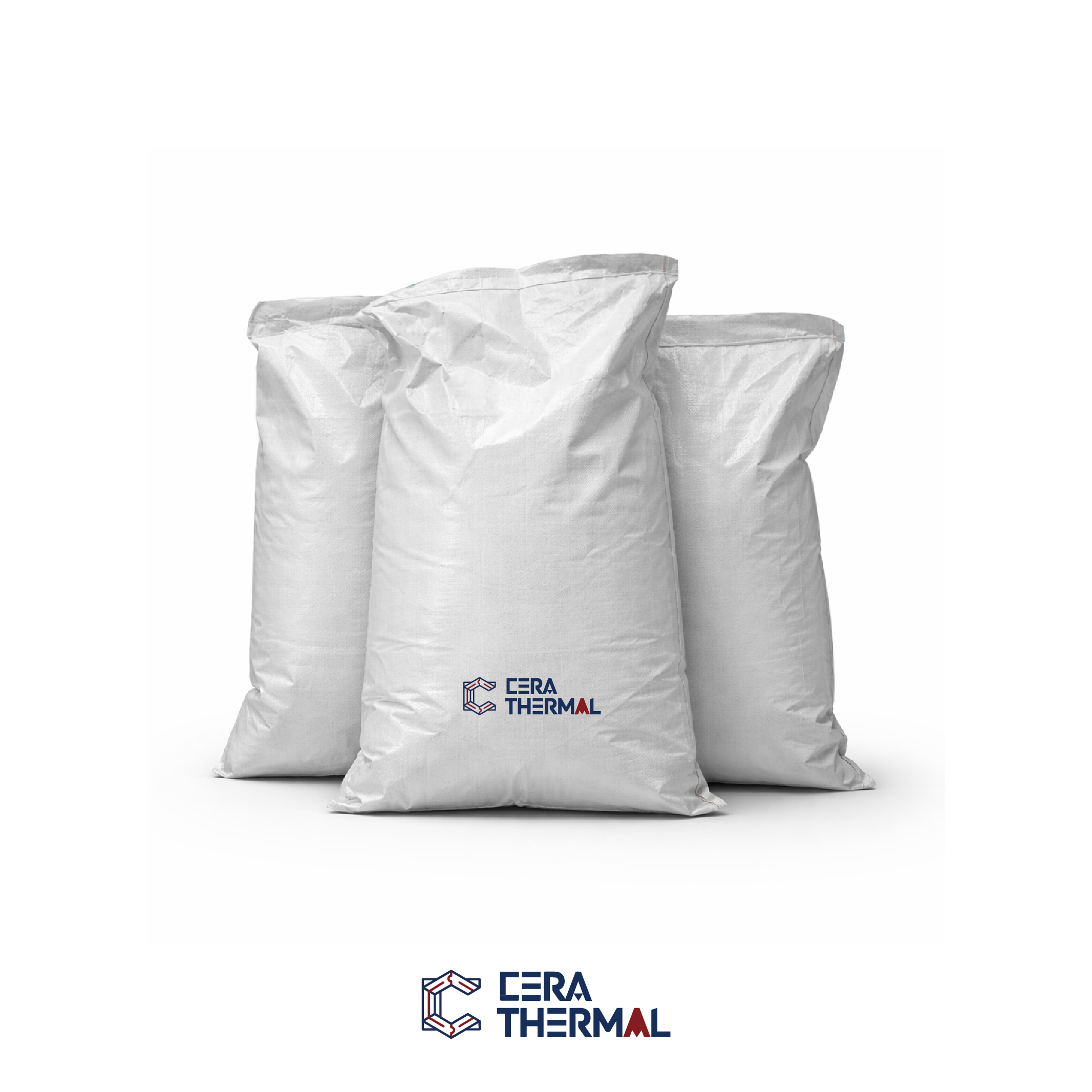

Dense refractory materials at the hot face to withstand direct heat and mechanical wear.
Insulating refractories or ceramic fiber boards behind to reduce heat loss and keep steel shell temperatures low.
This layered approach improves energy efficiency and extends refractory life. The required cold-face or shell temperature should be calculated according to equipment design, ambient conditions, safety requirements, and insulation thickness.
Mechanical properties are vital for refractory materials to survive harsh industrial conditions. Strength, often measured as cold crushing strength, indicates how much load a material can bear before breaking. Modulus of rupture (MOR) shows the material’s ability to resist bending or breaking under stress, especially at high or low temperatures. Abrasion resistance measures how well the refractory withstands wear from friction or mechanical action.
For example, a steelmaking furnace lining requires high strength and abrasion resistance to endure molten metal impact and slag movement. Materials like high-alumina bricks offer excellent strength and durability. Meanwhile, the MOR helps predict how the refractory will behave under thermal cycling or mechanical vibrations.
Refractory linings face a mix of mechanical and thermal stresses daily. Mechanical loads include:
Dynamic impacts from moving solids or molten materials
Hydrostatic pressure from molten metal or slag
Tensile stresses from thermal expansion mismatches
Thermal loads involve:
Repeated heating and cooling cycles causing fatigue
Creep deformation when exposed to high temperatures over time
Thermal gradients creating internal stresses
These loads can cause cracks, deformation, and eventual failure. Proper selection of refractory materials considers these stresses to ensure long service life.
Regular visual inspection helps detect early mechanical failure signs. Look for:
Cracks: Indicate stress concentrations or thermal shock damage
Bulges or deformation: Suggest expansion issues or creep
Spalling or flaking: Surface layers breaking off due to mechanical or thermal fatigue
Discoloration: May point to chemical attack or overheating weakening the structure
Identifying these signs early allows timely maintenance, preventing costly downtime.
ASTM standards provide uniform test methods and property definitions for refractories. They ensure fair comparison among materials from different manufacturers. Common ASTM tests include:
ASTM C133: Cold crushing strength
ASTM C1161: Modulus of rupture at room and high temperatures
ASTM C704: Abrasion resistance
Using ASTM data helps engineers select materials that meet specific mechanical requirements, improving reliability and performance.
Refractory materials often face harsh chemical environments that can degrade their structure and reduce lifespan. Common chemical attacks include:
Acidic reactions: Acidic slags, basic slags, alkalis, reducing gases, molten metals, and process vapors can affect different refractory chemistries in different ways. Acidic refractories generally resist acidic slags but are vulnerable to basic slags, while basic refractories such as magnesia resist basic slags but perform poorly in acidic environments.
Basic slag corrosion: In steelmaking, magnesia-based refractories resist basic slags but can degrade in acidic environments.
Alkali attack: Alkali compounds from ash or fuel residues react with silica refractories, causing swelling and loss of strength.
Reducing atmospheres: · In reducing or carbon-rich atmospheres, material selection should consider oxidation resistance, carbon pickup, product contamination risk, and compatibility with process gases.
Molten metal penetration: For molten-metal contact, select refractories based on the specific metal or alloy, wetting behavior, penetration risk, slag chemistry, and erosion rate.
Chemical attacks alter the refractory’s microstructure, leading to:
Loss of bonding: Chemical reactions break down oxide bonds, weakening mechanical strength.
Phase changes: Formation of low-melting compounds or glassy phases reduces refractoriness.
Volume changes: Expansion or contraction from chemical reactions cause cracks or spalling.
Surface erosion: Corrosive slags or gases wear away refractory surfaces, exposing fresh material to further attack.
These effects compromise safety, reduce service life, and increase maintenance costs.
Choosing a refractory requires matching chemical resistance to the process environment:
Acidic environments: Use high-alumina or zirconia refractories resistant to acid slags.
Basic environments: Magnesia-based refractories perform well against basic slags.
Alkali-rich atmospheres: Avoid silica refractories; select alumina or specialty refractories.
Reducing atmospheres: Carbon-containing refractories or those with protective coatings may be preferred.
Molten metals: Use dense, non-wetting refractories like carbon or silicon carbide.
Consulting chemical compatibility charts and supplier expertise helps identify the best fit.
Steelmaking: Magnesia refractories resist basic slags but corrode if exposed to acidic slags during process changes.
Glass production: Silica refractories face alkali attack from soda-lime glass, leading to swelling and spalling.
Cement kilns: Alkali and chlorine compounds attack refractories, causing rapid wear.
Aluminum furnaces:· Aluminum furnaces require refractories with good non-wetting behavior and resistance to aluminum penetration, corundum growth, and alkali/fluoride attack.
Power plants: Coal ash with alkali and sulfur compounds corrodes silica and alumina refractories.
Understanding these examples guides proper material selection and maintenance planning.
Choosing the right installation method is as important as selecting the refractory material itself. Different methods suit different applications, timelines, and budgets.
Brick Linings: Traditional and durable, brick linings involve stacking pre-formed refractory bricks. They offer excellent mechanical strength and thermal stability but require skilled labor and longer installation time. Ideal for furnaces needing precise shapes and long service life.
Cast-in-Place (Castables): This method uses a flowable refractory mix poured into forms or molds. It creates seamless linings with good mechanical properties. Castables allow complex shapes and faster installation than bricks but often need longer curing and bake-out times.
· Shotcreting (Gunning): Shotcrete involves spraying refractory material onto surfaces pneumatically. It’s fast and flexible, great for repairs or areas with difficult access. The final performance of gunned or shotcreted linings depends strongly on material formulation, equipment, water addition, rebound control, curing, and installer skill.
Rammed Plastic: Plastic refractories are rammed into place and develop strength after drying and heating. They are often used where thermal shock resistance, abrasion resistance, and fast repair are required.
Industrial downtime costs money. Often, refractory installation must fit tight schedules. Fast-setting materials like shotcrete or rammed plastic reduce downtime but may sacrifice some mechanical properties. Brick linings, though durable, take longer to install and cure.
Understanding your production schedule helps balance installation speed and refractory performance. For example, a steel furnace needing rapid relining during a short maintenance window may favor shotcrete. A cement kiln with planned long shutdown can use brick linings for durability.
Bake-out is the controlled heating of newly installed refractory to drive off moisture and cure the lining. Proper bake-out prevents steam explosions, cracking, and premature failure.
Bake-out schedules depend on material type, lining thickness, and equipment design. Castables and brick linings often require longer, gradual bake-outs. Fast-track castables and some shotcretes allow quicker bake-outs, enabling earlier startup.
Ignoring or rushing bake-out risks damaging the refractory and equipment. Always follow manufacturer recommendations and plan bake-out into your project timeline.
Recent advances improve refractory installation efficiency and performance:
Fast-Setting Castables: Fast-setting or fast-drying castables can reduce downtime when properly installed and baked out, but performance must be verified against the application requirements.
Colloidal Silica Binders: Improve shotcrete adhesion and durability.
3D Printing: 3D-printed refractory components are an emerging technology for selected custom shapes, but conventional bricks, castables, precast shapes, gunning materials, and ceramic fiber systems remain the mainstream choices.
Precast Modules: Factory-made refractory sections speed installation and improve quality control.
These innovations help meet modern industrial demands for faster, safer, and more reliable refractory linings.
Refractory selection requires balancing performance, installation time, cost, and service life. Ideally, you want the best material that performs well, costs less, and installs quickly. But in reality, getting all three is tough.
High-performance refractories usually come with higher prices and longer installation times. For instance, dense alumina bricks offer excellent durability but need skilled labor and more time to install. On the other hand, fast-setting castables or shotcretes install faster and reduce downtime but might not last as long under heavy wear.
The key is to evaluate what matters most for your operation. If downtime costs are huge, faster installation might justify higher material costs. If long-term durability is critical, investing in premium materials pays off by reducing maintenance frequency.
Focusing only on initial purchase price can be misleading. A cheaper refractory might save money upfront but lead to frequent repairs, early replacements, and unplanned shutdowns. These issues quickly add up in operational expenses.
Consider total cost of ownership (TCO) — including installation, maintenance, downtime, and replacement costs over the refractory’s life. For example, a magnesia-based lining may cost more initially but resist chemical corrosion better, reducing downtime in steelmaking plants.
Calculating TCO helps avoid the trap of picking low-cost refractories that fail prematurely. It encourages investing in materials that deliver better value through longer service life and fewer disruptions.
Economic factors like market conditions, raw material availability, and budget constraints influence refractory selection. During tight budgets, companies might lean toward lower-cost options to meet immediate needs.
However, economic pressures also drive innovation in refractory technology, offering materials that balance cost and performance better than older options. Staying informed about market trends and new materials can help you make smarter choices aligned with your financial situation.
Choosing low-cost refractories without thorough evaluation can lead to problems like:
Premature failure due to poor mechanical or chemical resistance
Increased downtime from frequent repairs or relines
Hidden costs in installation complexity or longer bake-out times
Safety risks if material fails under operating conditions
Avoid these pitfalls by consulting experts, reviewing ASTM-certified data, and considering your specific process requirements. Don’t sacrifice essential properties just to save on initial cost.
Refractory materials come in many types, each designed for specific industrial uses. The most common are alumina, silica, magnesia, and zirconia, but others like fireclay, carbon, and chromium-based refractories also play important roles.
Alumina (Al₂O₃): Known for its excellent thermal stability and mechanical strength. It withstands temperatures up to about 2050°C (3722°F). Alumina refractories are widely used in kilns, furnaces, and reactors where high heat and wear resistance are needed.
Silica (SiO₂): Offers great thermal shock resistance and is stable up to around 1713°C (3115°F). Silica refractories are common in glass production and areas requiring resistance to rapid temperature changes. However, they perform poorly in acidic environments.
Magnesia (MgO): Highly resistant to basic slags and temperatures up to 2800°C (5072°F). Magnesia refractories are ideal for steelmaking and cement kilns but are less stable in acidic conditions.
Zirconia (ZrO₂): Known for outstanding durability and chemical resistance, especially against acidic slags. It handles temperatures up to 2715°C (4919°F). Zirconia is used in aerospace, electronics, and specialized furnace linings.
Other materials include:
Fireclay: A cost-effective option with moderate thermal resistance (up to 1500°C), used in brick linings and general furnace applications.
Carbon: Excellent thermal conductivity and resistance to molten metals, used in electric arc furnaces.
Chromium-based refractories: Used in glass and ceramic production for their chemical resistance.
Material | Max Temp (°C) | Thermal Conductivity (W/m·K) | Chemical Resistance | Mechanical Strength |
|---|---|---|---|---|
Alumina | 2050 | ~30 | Excellent (acidic/neutral) | High |
Silica | 1713 | ~1.4 | Moderate (alkali sensitive) | Moderate |
Magnesia | 2800 | ~25 | Very good (basic slags) | High |
Zirconia | 2715 | ~2.4 | Excellent (acidic slags) | Very high |
Fireclay | 1500 | ~10 | Moderate | Moderate |
Carbon | 3650 | ~150 | Fair (oxidizes easily) | High |
Chromium | 1900 | ~25 | High | High |
Each material's thermal conductivity affects heat retention and energy efficiency. For example, alumina's high conductivity suits applications needing quick heat transfer, while silica's low conductivity helps insulate.
Mechanical strength ensures durability against abrasion, impact, and thermal cycling. Alumina and zirconia excel here, while fireclay suits less demanding environments.
Chemical resistance varies widely. Magnesia resists basic slags but degrades in acidic ones. Zirconia withstands acidic slags well, making it suitable for harsh chemical environments.
Alumina: Cement kilns, steel furnaces, petrochemical reactors.
Silica: Glass melting furnaces, kiln furniture, thermal shock-prone zones.
Magnesia: Steelmaking linings, basic oxygen furnaces, cement plants.
Zirconia: Aerospace components, electronics, specialized furnace linings.
Fireclay: Brick linings for general furnaces, hot blast stoves.
Carbon: Electric arc furnaces, molten metal handling.
Chromium: Glass and ceramic production environments.
New refractory technologies, such as low-cement and ultra-low-cement castables, colloidal silica bonded systems, precast shapes, fast-drying castables, and improved anchoring designs, are helping plants reduce downtime and improve lining reliability. However, material selection should still be based on proven performance under the actual operating conditions.
Choosing the right refractory material starts with understanding the unique demands of your industrial process. Every application has its own temperature profiles, chemical exposures, mechanical stresses, and maintenance schedules. Review past failure histories carefully—look for patterns like thermal shock damage, chemical corrosion, or mechanical wear. These insights reveal weaknesses in previous materials or installation methods. For example, if a lining repeatedly spalls due to thermal cycling, prioritize materials with superior thermal shock resistance. If chemical attack shortens service life, focus on refractories with proven corrosion resistance. Tailoring material choice based on actual operating conditions and failure experiences helps avoid repeating costly mistakes.
No one knows refractories better than the experts who manufacture and install them. Engage early with refractory engineers and trusted suppliers. They can recommend materials and installation techniques suited to your process specifics. Experts often have data from similar industries or applications and can share lessons learned. They also help interpret ASTM test data and chemical compatibility charts. Collaborating with knowledgeable suppliers ensures you don’t rely solely on generic solutions or marketing hype. Their input can save time and money by matching your needs to the right refractory system, including linings, anchors, and installation methods.
Beware of contractors or suppliers who push a single refractory type for all jobs. While some materials like shotcrete or castables may be trendy, they aren’t always the best fit. One-dimensional choices can lead to premature failures if the material doesn’t suit the specific thermal, mechanical, or chemical demands. For instance, a contractor favoring shotcrete might overlook that rammed plastic refractories performed better in certain high-impact applications. Always request multiple options and weigh pros and cons. Seek contractors who understand a broad range of materials and methods and who base recommendations on your application, not just product availability or profit margins.
Selecting the right refractory isn’t a one-time event. Once installed, ongoing monitoring of lining condition is critical. Regular inspections for cracks, spalling, or chemical attack help catch early signs of failure. Use temperature sensors, visual checks, and performance data to assess refractory health. When issues arise, adjust maintenance schedules or consider material upgrades for relines. Continuous feedback loops between operations and refractory specialists enable fine-tuning of material choices over time. This proactive approach extends lining life, improves safety, and saves money by preventing unexpected downtime.
Choosing the right refractory material requires balancing thermal, mechanical, chemical, logistics, and cost factors carefully. Understanding these key elements ensures durability and efficiency in industrial applications. Innovations like fast-setting castables and 3D printing are shaping the future of refractory technology. Collaborating with experts helps tailor solutions to specific needs and prevents costly failures. Cera Thermal offers advanced refractory products that deliver reliable performance and value, supporting industries with expert guidance and innovative materials.
A: A refractory material is designed to withstand high temperatures and harsh conditions in industrial processes, maintaining structural integrity and safety.
A: Select a refractory material that matches or exceeds your process’s maximum temperature and thermal cycling to prevent failure from thermal shock or spalling.
A: Chemical attacks can degrade refractory structure, so choosing materials compatible with your process environment extends lining life and reduces maintenance.
A: Installation speed, method, and bake-out requirements influence material selection to balance downtime and performance needs.
A: Not necessarily; consider total cost of ownership including durability, maintenance, and downtime, not just initial price.
A: Look for cracks, spalling, bulges, or discoloration during inspections to catch early signs of failure.
A: They improve thermal efficiency by combining dense hot-face materials with insulating backing layers, reducing heat loss and thermal stress.
